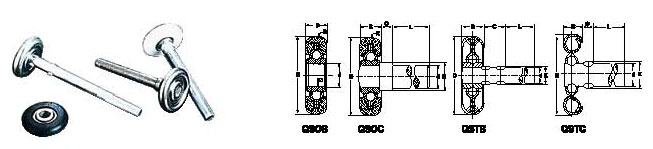

Steel, Plastic Rollers For Doors & Vehicles

Bearing No.	Dimension (mm)							Ball
	D	d	E	B	C	L	R	No.	Dia
QSOB4601	46	11.2		12.5			6.25	10	1/4
QSOB4701	47.5	11.2		12.5			6.25	10	1/4
QSOB4801	48.5	11.2		12.5			6.25	10	1/4
QSOC4601	46	11.0	15.0	12.5	17.3	85.0	6.25
QSOC4602	46	11.0	14.0	12.5	14.0	96.0	6.25
QSOC4603	46	11.0	14.0	12.5	14.0	71.0	6.25
QSOC4604	46	12.0	14.2	12.5	19.8	86.58	6.25
QSOC4605	46	12.0	14.2	12.5	19.8	162.5	6.25
QSOC4606	46	9.4	12.7	12.5	103.7	4.7	6.25
QSOC4607	46	11.0	15.0	12.5	17.3	165.2	6.25
QSOC4608	46	12.7	16.0	12.5	13.5	99.0	6.25
QSOC4609	46	11.0	14.2	12.5	18.8	99.0	6.25
QSOC4610	46	11.0	14.2	12.5	5.5	76.0	6.25
QSOC4611	46	11.0	14.2	12.5	12.5	20.75	6.25
QSOC4612	46	11.0	14.2	12.5	12.5	225.0	6.25
QSOC4613	46	11.0	14.2	12.5	12.5	94.0	6.25
QSOC4614	46	11.0	15.0	12.5	17.3	165.2	6.25
QSOC4615	46	11.0	15.0	12.5	17.3	85.0	6.25
QSOC4616	46	11.0	14.0	12.5	6.0	82.0	6.25
QSOC4617	46	11.0	14.2	12.5	12.5	94.0	6.25

Bearing No.	Dimension (mm)						Ball
	D	d	E	B	C	L	No.	Dia
QSTB4601	46	11.0	13.6	12.0	13.5	88.5	10	1/4
QSTB4602	46	11.0	13.6	12.0	13.5	152.0	10	1/4
QSTB4603	46	11.0	13.6	12.0	13.5	215.1	10	1/4
QSTB4604	46	11.0	13.6	12.0	21.5	80.5	10	1/4
QSTB7701	71	11.0	13.6	18.6	15.8	85.6	10	1/4
QSTB7702	71	11.0	13.6	18.6	15.8	85.6	10	1/4
QSTB7703	71	11.0	13.6	18.6	15.8	85.6	10	1/4
QSTC4601	46	11.0	13.6	11.4	15.8	85.6	10	1/4
QSTC4602	46	11.0	13.6	11.4	15.3	167.3	10	1/4
