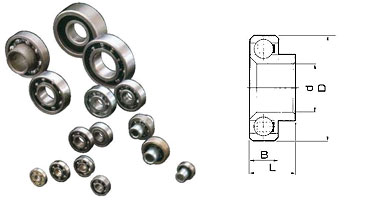

| Part No. |
D |
d |
B |
L |
Remark |
| CB001 |
15.4 |
6.1 |
5.0 |
14.0 |
|
| CB002 |
15.9 |
5.1 |
3.4 |
4.0 |
|
| CB003 |
17.0 |
6.1 |
6.0 |
7.8 |
|
| CB004 |
17.9 |
6.5 |
6.5 |
10.0 |
Single Sheild |
| CB005 |
17.9 |
6.5 |
6.5 |
10.0 |
Single Sheild,All Stainless Steel |
| CB006 |
19.0 |
6.1 |
4.5 |
5.0 |
|
| CB007 |
19.0 |
5.0 |
6.0 |
6.0 |
Polyacetals Outer Ring |
| CB008 |
22.0 |
8.0 |
7.0 |
7.0 |
|
| CB009 |
22.0 |
8.0 |
7.0 |
7.0 |
Double Sheilds |
| CB010 |
22.0 |
6.0 |
7.0 |
7.0 |
Polyacetals Outer Ring, L=8.0 available |
| CB011 |
23.0 |
8.1 |
7.0 |
13.0 |
Single Sheild |
| CB012 |
23.0 |
9.0 |
7.0 |
7.0 |
|
| CB013 |
24.0 |
8.2 |
9.0 |
18.0 |
|
| CB014 |
24.0 |
9.3 |
7.0 |
12.0 |
Single Sheild |
| CB015 |
24.0 |
6.0 |
7.0 |
7.0 |
Polyacetals Outer Ring, L=8.0 available |
| CB016 |
25.8 |
12.2 |
6.8 |
13.9 |
|
| CB017 |
26.0 |
6.0 |
7.0 |
7.0 |
Polyacetals Outer Ring, L=8.0 available |
| CB018 |
28.0 |
12.1 |
8.0 |
14.0 |
|
| CB019 |
30.0 |
10.0 |
9.0 |
9.0 |
|
| CB020 |
30.0 |
6.0 |
7.0 |
7.0 |
Polyacetals Outer Ring, L=8.0 available |
| CB021 |
32.2 |
12.0 |
10.0 |
16.5 |
|
| CB022 |
40.0 |
15.0 |
8.0 |
17.0 |
|
| CB023 |
40.0 |
15.0* |
8.0 |
19.0 |
HEX bore |
| CB024 |
40.0 |
17.2 |
8.0 |
17.0 |
|
| CB025 |
46.0 |
20.1 |
10.0 |
21.5 |
|
| CB026 |
54.8 |
17.7* |
18.3 |
32.5 |
HEX bore |
| *shows dimension of the opposite size |
