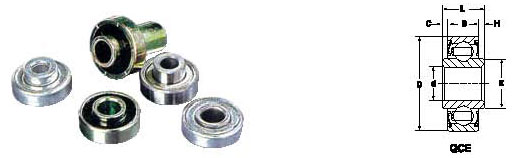

| Unground Low Carbon Steel Bearing |
|
| Bearing No. | Dimension (mm) | Ball | |||||||
| D | d | E | B | C | H | L | No. | Dia | |
| QCE01ZZ | 7+0.1 | 7 | 0.2 | 5 | 12.2+0.15 | 7 | 5/32 | ||
| QCE02ZZ | 8+0.1 | 12 | 7 | 7+0.05 | 7 | 5/32 | |||
| QCE03ZZ | 22+0.02 | 8+0.1 | 12 | 7 | 0.2 | 3.5 | 10.7+0.15 | 7 | 5/32 |
| QCE04ZZ | 8+0.1 | 12 | 7 | 1.0 | 1.0 | 9+0.15 | 7 | 5/32 | |
| QCE05ZZ | 8+0.1 | 12 | 7 | 3 | 5.3 | 15.3+0.1 | 7 | 5/32 | |

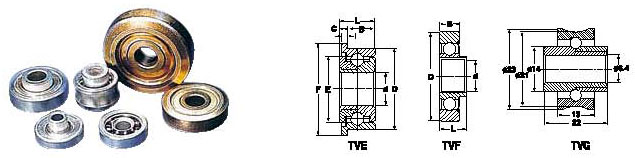

| Bearing No. | Dimension (mm) | Ball | |||||||||
| D | d | E | B | C | H | L | T | R | No. | Dia | |
| TVC3013 | 30.2 | 13 | 17 | 7.5 | 47 | 7.5 | 62 | 16 | 3/1 | ||
| TVD2308 | 23.1 | 8 | 12 | 7.2 | 3.9 | 11.1 | 25.4 | 1.6 | 7 | 5/32 | |
| TVD2713 | 26.9 | 12.7 | 17.4 | 12.7 | 6.4 | 2.3 | 21.4 | 30 | 1.6 | 9 | 5/32 |
| TVD3313A | 30.38 | 12.7 | 18 | 7.8 | 14.27 | 1.6 | 15.8 | 33.2 | 1.6 | 8 | 3/16 |
| TVD3313B | 30.38 | 12.7 | 18 | 15.1 | 14.27 | 1.6 | 15.8 | 33.2 | 1.6 | 8 | 3/16 |
| TVD3211 | 31.8 | 11.11 | 19 | 5.5 | 4 | 9.5 | 34.9 | 3 | 8 | 3/16 | |
| TVE2311 | 23.1 | 11.11 | 17.5 | 7.2 | 3.8 | 11 | 27 | 1.6 | 17 | 1/8 | |
| TVE2713 | 26.9 | 12.7 | 22 | 6.4 | 3.8 | 8.5 | 30 | 1.6 | 20 | 1/8 | |
| TVE3211 | 31.8 | 12.7 | 23 | 5.5 | 3.8 | 9 | 34.9 | 3 | 17 | 5/32 | |
| TVE3216 | 31.8 | 12.7 | 25.4 | 5.5 | 3.5 | 9 | 34.9 | 2.5 | 19 | 5/32 | |
| TVF2506 | 25 | 6 | 7 | 10 | 7 | 5/32 | |||||
| TVF3208 | 32 | 6 | 9 | 14 | 7 | 3/16 | |||||
| TVF3210 | 32 | 10 | 9 | 19 | 7 | 3/16 | |||||
 |
