| Part No. |
D1 |
D2 |
d |
B |
W |
L |

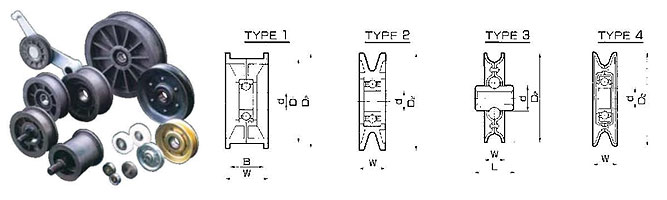

Type |
Remark |
| IP001 |
- |
45.0 |
6.0 |
- |
9.4 |
14.0 |
3 |
|
| IP002 |
40.0 |
48.0 |
12.0 |
20.0 |
26.0 |
- |
1 |
For back side of B type V-Belt, #6201 Bearing |
| IP003 |
- |
70.0 |
- |
- |
19.0 |
42.0 |
2 |
A type V-Belt, #6202+M10 Shaft |
| IP004 |
- |
68.0 |
15.0 |
- |
17.6 |
- |
4 |
6202 ZZ inserted |
| IP005 |
70.0 |
80.0 |
15.0 |
20.0 |
25.0 |
- |
1 |
For back side of B type V-Belt, #6202 Bearing |
| IP006 |
- |
80.0 |
15.0 |
- |
21.0 |
- |
2 |
B type V-Belt, #6202 Bearing |
| IP007 |
- |
101.6 |
17.0 |
- |
19.1 |
21.2 |
4 |
|
| IP008 |
130.0 |
144.0 |
15.0 |
30.0 |
38.0 |
- |
1 |
For back side of C type V-Belt, #6202X2 Bearings |
| *Polyamide Housing |
