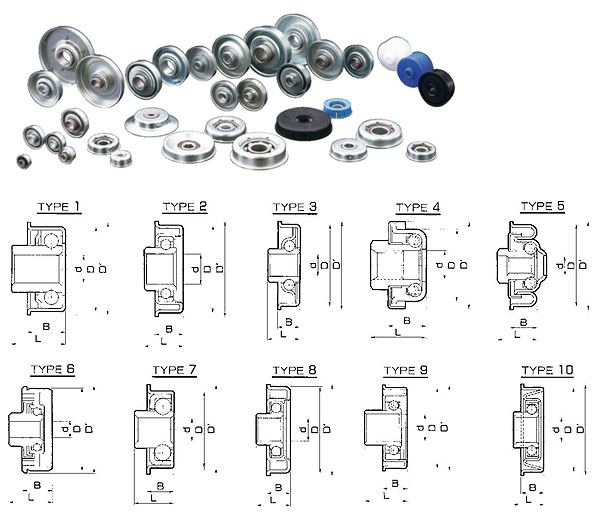

Pressed Radial Bearing with Housing

Part No.	D1	D’	d	B	L	Type	Remark
PBH001	16.7	18.5	6.2	7.0	10.0	7
PBH002	19.8	22.2	6.2	10.0	14.0	1
PBH003	22.0	25.0	7.0	10.0	14.0	1
PBH004	25.9	28.3	8.2	14.5	19.0	9	with Polyamide Retainer
PBH005	26.0	28.5	8.2	15.0	18.0	6	Polyacetals Housing
PBH006	26.1	28.0	8.1	11.0	14.0	1
PBH007	26.1	28.5	8.1	9.5	13.5	8
PBH008	29.4	31.5	8.3	9.2	14.2	8
PBH009	30.6	33.5	12.2	13.0	17.0	1
PBH010	35.2	38.0	12.2	9.0	14.0	8	d=8.2Ø available
PBH011	35.2	37.8	12.2	12.5	17.0	6	Polyacetals Housing
PBH012	35.7	38.0	12.2	11.0	16.0	2
PBH013	35.7	38.0	12.2	9.0	13.0	8	All Stainless Steel
PBH014	35.9	41.7	12.2	11.0	17.5	9	with Polyamide Retainer
PBH015	36.3	40.5	12.2	11.0	17.5	9	with Polyamide Retainer
PBH016	39.2	42.5	12.2	11.0	17.5	9	with Polyamide Retainer
PBH017	39.5	42.5	12.1	12.7	17.7	9	with Polyamide Retainer
PBH018	39.5	42.5	12.2	12.0	17.2	8
PBH019	39.9	42.5	12.2	9.0	14.0	8
PBH020	40.0	49.0	M16.0	21.0	31.0	4
PBH021	40.7	44.0	11.8*	12.7	15.0	3	d=12.1Ø available
PBH022	40.7	44.0	11.8*	10.0	14.0	10	d=12.1Ø available
PBH023	41.9	43.5	12.2	9.0	14.0	8
PBH024	41.9	44.0	8.2	10.0	15.0	2	d=12.1Ø available
PBH025	42.3	45.0	8.1	11.0	18.0	2
PBH026	42.0	43.5	8.1	25.0	32.0	6
PBH027	43.6	48.6	12.2	9.0	15.5	8
PBH028	43.6	48.6	12.1	10.5	17.0	9	with Polyamide Retainer
PBH029	44.1	48.5	15.2	12.0	14.7	8	d=12.1Ø available
PBH030	45.0	48.3	11.3*	10.7	13.4	3	d=8.0Ø available
PBH031	45.0	70.0	8.0	15.0	17.0	3	with Wide Flange
PBH032	45.2	48.3	8.0	11.0	13.5	2
PBH033	45.6	48.8	12.2	12.0	17.0	8
PBH034	47.0	50.0	8.2	9.0	13.0	2	d=6.0Ø,9.2Ø,10.2Ø available
PBH035	47.0	50.0	8.2	9.0	13.0	8	All Stainless Steel
PBH036	47.3	50.0	M10.0	15.0	22.2	5
PBH037	47.5	50.8	11.8*	12.7	15.0	3	d=10.0Ø,11.2Ø,12.1Ø available
PBH038	47.5	50.8	11.8*	12.7	16.7	10	d=12.1 available
PBH039	47.5	50.8	12.2	15.0	21.0	6	with Polyamide Housing,6002 Bearing
PBH040	48.0	50.0	6.2	9.0	13.0	2	d=8.2Ø available
PBH041	52.1	54.6	17.2	14.0	20.5	9	with Retainer
PBH042	52.1	54.6	12.2	14.2	54.6	8	Single Seal
PBH043	53.1	57.3	17.2	14.0	20.1	9	with Felt
PBH044	53.1	57.0	12.0	14.9	14.9	9	6201ZZ Bearing inserted
PBH045	53.2	57.0	17.2	12.7	16.7	2	d=12.2Ø,15.2Ø, available
PBH046	53.2	56.5	12.0	17.0	17.0	6	Polyacetals Housing,6201 Bearing
PBH047	54.0	57.0	20.0	12.0	16.0	3
PBH048	54.3	57.0	12.2	12.7	16.7	2
PBH049	54.8	60.5	17.2	12.7	16.7	2	d=12.2Ø,D=58.0 available
PBH050	55.2	60.5	20.3	14.0	18.0	8
PBH051	55.2	60.5	20.3	14.0	18.0	8	All Stainless Steel

Part No.	D1	D’	d	B	L	Type	Remark
PBH052	56.0	59.3	12.1	12.7	20.7	2
PBH053	56.0	59.3	12.1	12.7	20.7	2	with Felt, Double Shields
PBH054	56.3	60.0	M12.0	13.0	20.8	5
PBH055	56.3	60.0	12.0	14.9	14.9	9	6201ZZ Bearing inserted
PBH056	56.5	60.0	15.0*	19.0	25.0	9	d=12.7Ø,16.2Ø available
PBH057	57.2	60.5	11.8*	12.7	16.7	10	d=12.1Ø available
PBH058	57.2	60.5	11.8*	12.7	15.0	3	d=12.1Ø available
PBH059	57.5	60.5	12.2	14.0	19.0	8	All Stainless Steel
PBH060	57.7	60.8	12.2	11.0	17.5	9	with Polyamide Retainer
PBH061	59.5	62.7	11.8*	12.7	16.7	10	d=12.1Ø available
PBH062	62.5	65.6	12.2	11.0	17.5	9	with Polyamide Retainer
PBH063	65.0	68.2	11.8*	12.7	18.7	10	d=12.1Ø available
PBH064	66.9	73.0	20.1	17.0	26.4	9	with Felt
PBH065	66.9	73.0	20.1	17.0	24.0	8
PBH066	67.2	70.3	12.2	11.0	17.5	9	with Polyamide Retainer
PBH067	69.2	74.5	16.2	23.0	30.0	9	d=19.2Ø available
PBH068	70.0	72.5	20.0	12.0	16.0	3
PBH069	70.7	76.3	17.2	13.0	18.0	2
PBH070	71.5	74.7	11.8*	12.7	18.7	10	HEX bore
PBH071	72.0	75.1	12.2	11.0	17.5	9	with Polyamide Retainer
PBH072	75.8	79.0	12.2	11.0	17.5	9	with Polyamide Retainer
PBH073	83.0	86.0	20.0	12.0	16.0	3
