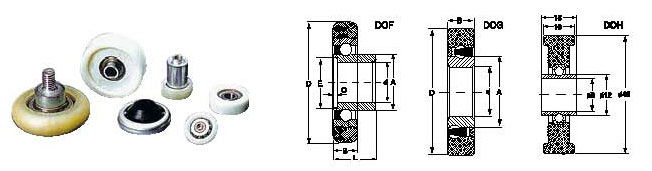

| Plastics Pulley |
|
| Bearing No. | Dimension (mm) | ||||||
| D | d | F | B | A | L | a | |
| DOF-2206 | 22 | 6 | 10 | 6 | 10 | 8 | 1.5 |
| DOF-2406 | 24 | 6 | 10 | 6 | 10 | 8 | 1.5 |
| DOF-2506 | 25 | 6 | 10 | 6 | 10 | 8 | 1.5 |
| DOG-2206 | 22 | 6 | 9.5 | 7 | |||
| DOG-2406 | 24 | 6 | 9.5 | 7 | |||
| DOG-3008 | 30 | 8 | 14.5 | 8 | |||
 |

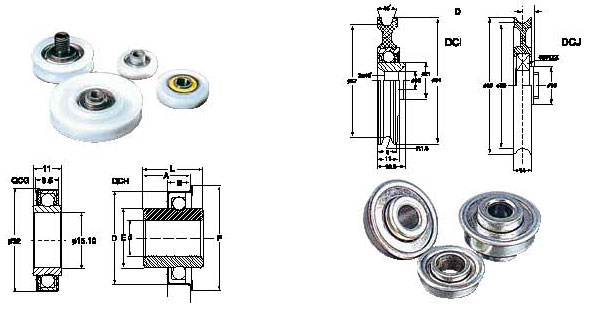

| Bearing No. | Dimension (mm) | ||||||
| D | d | A | B | L | E | C | |
| QCG01 | 28.6 | 9.65 | 17.5 | 31.75 | 7.9 | 17.53 | 20.70 |
| QCG02 | 28.6 | 9.65 | 17.5 | 31.75 | 7.9 | 13.1 | 17.47 |
| QCG03 | 28.6 | 8.1 | 17.4 | 31.75 | 8 | 16 | 18.85 |
| QCG04 | 28.6 | 9.6 | 17.5 | 31 | 7 | 14.5 | 20 |
