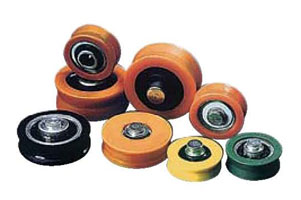

| Nylon Window Pulley |
 |
| |
| Bearing No. |
Dimension (mm) |
Ball |
| D |
d |
F |
B |
A |
L |
a |
No. |
Dia |
| DOB2101 |
21 |
19 |
8 |
8.6 |
8 |
13.6 |
150 |
6 |
1/8 |
| DOB2102 |
21 |
6 |
19.4 |
7 |
7.6 |
10.8 |
150 |
6 |
1/8 |
| DOB2103 |
21 |
6 |
20 |
7 |
7.5 |
11 |
156 |
6 |
1/8 |
| DOB2104 |
21 |
6 |
20 |
7 |
7.5 |
13.8 |
156 |
6 |
1/8 |
| DOB2105 |
21.5 |
6 |
20 |
8 |
10.5 |
15.5 |
156 |
6 |
1/8 |
| DOB2201 |
22 |
6 |
20 |
7.3 |
8 |
14 |
150 |
6 |
1/8 |
| DOB2202 |
22 |
6 |
20 |
9 |
9.4 |
12 |
150 |
6 |
1/8 |
| DOB2203 |
22 |
6 |
20 |
9 |
9 |
14.5 |
150 |
6 |
1/8 |
| DOB2204 |
22 |
6 |
20 |
9 |
9.4 |
15.8 |
150 |
6 |
1/8 |
| DOB2205 |
22 |
6 |
20 |
9 |
9.8 |
15.8 |
150 |
6 |
1/8 |
| DOB2206 |
22 |
6 |
20 |
8 |
|
16 |
150 |
6 |
1/8 |
| DOB3001 |
30 |
7 |
27.8 |
11 |
|
18 |
150 |
7 |
5/32 |
| DOC1901 |
19.5 |
4 |
17.7 |
7 |
|
11.5 |
150 |
6 |
1/8 |
| DOC2001 |
20.5 |
5 |
18.6 |
7 |
|
12 |
150 |
6 |
1/8 |
| DOC2002 |
20.8 |
5 |
19.4 |
7 |
|
7.5 |
156 |
7 |
1/8 |
| DOC2101 |
21 |
5 |
20 |
7 |
|
7 |
156 |
6 |
1/8 |
| DOC2102 |
21 |
5 |
20.4 |
7 |
|
7.5 |
156 |
6 |
1/8 |
| DOC2201 |
22 |
6 |
20 |
9 |
|
11.3 |
150 |
7 |
1/8 |
| DOC2202 |
22 |
6 |
20 |
9 |
|
11.3 |
156 |
6 |
1/8 |
| DOC2203 |
22 |
6 |
20 |
10 |
|
11 |
156 |
6 |
1/8 |
| DOC2204 |
22.4 |
6 |
20 |
9 |
|
11.3 |
150 |
7 |
1/8 |
| DOC2701 |
27.3 |
6 |
25 |
11 |
|
12 |
156 |
7 |
5/32 |
| DOC3001 |
30 |
7 |
28 |
12 |
|
13 |
156 |
7 |
5/32 |
| Bearing No. |
Dimension (mm) |
Ball |
| D |
d |
F |
B |
A |
L |
a |
No. |
Dia |
| DOD2101 |
21.6 |
6 |
20.6 |
8 |
8.5 |
11.5 |
11 |
6 |
1/8 |
| DOD2701 |
27 |
6 |
25 |
8 |
11.5 |
14.5 |
4.5 |
7 |
5/32 |
| DOD2801 |
28 |
6 |
24 |
8 |
11.5 |
14.5 |
2.25 |
7 |
5/32 |
| DOD2802 |
28 |
6 |
24 |
8.3 |
11.5 |
14.5 |
2.1 |
7 |
5/32 |
| Bearing No. |
Dimension (mm) |
Ball |
| D |
d |
F |
B |
A |
L |
a |
No. |
Dia |
| DOE2101 |
21 |
4 |
19 |
7 |
7.7 |
11 |
120 |
6 |
1/8 |
| DOE2201 |
22 |
6 |
19 |
8 |
8.5 |
11.4 |
99 |
6 |
1/8 |
| DOE2202 |
22 |
6 |
19 |
8 |
8.5 |
11.4 |
100 |
6 |
1/8 |
