Bearings For Logistic Industry

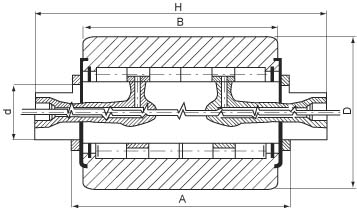

Muti-Row Shaft Type Bearings 01
| GLD Type | d | D | H | A | B | C | Co | Reference index | |
| mm | mm | mm | mm | mm | KN | KN | Italy | ||
|
NNQUP1020.5-2Z |
NNQUP1020.5-2RS |
10 | 20,5 | 60 | 28 | 26 | 9,5 | 11 | 2.0925/1 |
|
NNQUP1225.5-2Z |
NNQUP1225.5-2RS |
12 | 25,5 | 61,5 | 32 | 30 | 8,3 | 12,2 | 2.1719 |
|
NNQUP1533-2Z |
NNQUP1533-2RS |
15 | 33 | 110 | 82 | 80 | 80 | 62 | 2.1089 |
|
NNQUP1533A-2Z |
NNQUP1533A-2RS |
15 | 33 | 95 | 52 | 50 | 46,2 | 71,1 | 2.1726 |
|
NNQUP1833-2Z |
NNQUP1833-2RS |
18 | 33 | 90 | 58 | 57 | 26 | 30,5 | 9.2309 |
|
NNQUP1837-2Z |
NNQUP1837-2RS |
18 | 37 | 102 | 59 | 57 | 33,5 | 52 | 2.1112 |
|
NNQUP1638-2Z |
NNQUP1638-2RS |
16 | 38 | 110 | 82 | 80 | 92 | 68 | 2.1088 |
|
NNQUP1638A-2Z |
NNQUP1638A-2RS |
16 | 38 | 95 | 52 | 50 | 32 | 31 | 2.177 |
|
NNQUP2045-2Z |
NNQUP2045-2RS |
20 | 45 | 102 | 70 | 68 | 66,1 | 114,3 | 2.1802/M |
|
NNQUP2047-2Z |
NNQUP2047-2RS |
20 | 47 | 168 | 112 | 108 | 123 | 260 | 21640 |
|
NNQUP2047A-2Z |
NNQUP2047A-2RS |
20 | 47 | 145 | 116,6 | 115 | 108,8 | 135 | 2.1869 |
|
NNQUP2047B-2Z |
NNQUP2047B-2RS |
20 | 47 | 145 | 117 | 115 | 102 | 124 | 9.188 |
|
NNQUP2047C-2Z |
NNQUP2047C-2RS |
20 | 47 | 172 | 116 | 115 | 102 | 125 | 2.1897 |
|
NNQUP2047D-2Z |
NNQUP2047D-2RS |
20 | 47 | 110 | 72 | 70 | 75 | 113,5 | 9.2332 |
|
NNQUP2548-2Z |
NNQUP2548-2RS |
25 | 48 | 133 | 85 | 83 | 68 | 94 | 9.2301 |
Muti-Row Shaft Type Bearings 02
| GLD Type | d | D | H | A | B | C | Co | Reference index | |
|
|
|
mm | mm | mm | mm | mm | KN | KN | Italy |
|
NNQUP2550-2Z |
NNQUP2550-2RS |
25 | 50 | 90 | 60 | 58 | 82 | 140 | 9.2295 |
|
NNQUP2052-2Z |
NNQUP2052-2RS |
20 | 52 | 225 | 160 | 159 | 151 | 248 | 2.1484 |
|
NNQUP3056-2Z |
NNQUP3056-2RS |
30 | 56 | 105 | 67 | 65 | 44,2 | 77 | 2.1701 |
|
NNQUP3056A-2Z |
NNQUP3056A-2RS |
30 | 56 | 133 | 85 | 83 | 68 | 133 | 9.2298 |
|
NNQUP2458-2Z |
NNQUP2458-2RS |
24 | 58 | 110 | 82 | 80 | 142,2 | 100,6 | 2.109 |
|
NNQUP3458-2Z |
NNQUP3458-2RS |
34 | 58 | 110 | 82 | 80 | 117 | 181,7 | 9.2244 |
|
NNQUP2458A-2Z |
NNQUP2458A-2RS |
24 | 58 | 110 | 82 | 82 | 116 | 183 | 9.2292 |
|
NNQUP2060-2Z |
NNQUP2060-2RS |
20 | 60 | 148 | 102 | 100 | 88,2 | 174 | 2.1797 |
|
NNQUP3565-2Z |
NNQUP3565-2RS |
35 | 65 | 200 | 136,1 | 136,1 | 161,7 | 335,5 | 9.2106 |
|
NNQUP2866-2Z |
NNQUP2866-2RS |
28 | 66 | 110 | 82 | 80 | 128 | 209 | 2.1551 |
|
NNQUP29.268-2Z |
NNQUP29.268-2RS |
29,2 | 68 | 140 | 106 | 100 | 176 | 305 | 9.2208 |
|
NNQUP29.268A-2Z |
NNQUP29.268A-2RS |
29,2 | 68 | 197 | 106 | 100 | 176 | 305 | 9.2212 |
|
NNQUP4071-2Z |
NNQUP4071-2RS |
40 | 71 | 165 | 125 | 125 | 144 | 236 | 9.2237 |
|
NNQUP2876-2Z |
NNQUP2876-2RS |
28 | 76 | 140 | 106 | 100 | 198,5 | 356,5 | 9.2277 |
|
NNQUP3078-2Z |
NNQUP3078-2RS |
30 | 78 | 190 | 140 | 136 | 149 | 148 | 2.1087 |
|
NNQUP3580-2Z |
NNQUP3580-2RS |
35 | 80 | 201 | 160,3 | 178,7 | 297 | 2.1874 | |
Muti-Row Shaft Type Bearings 03
| GLD Type | d | D | H | A | B | C | Co | Reference index | |
|
|
|
mm | mm | mm | mm | mm | KN | KN | Italy |
|
NNQUP3582-2Z |
NNQUP3582-2RS |
35 | 82 | 180 | 100 | 96 | 486 | 692 | 2.1069 |
|
NNQUP4590-2Z |
NNQUP4590-2RS |
45 | 90 | 141 |
|
100 | 146,8 | 182,5 | 2.1847 |
|
NNQUP4592-2Z |
NNQUP4592-2RS |
45 | 92 | 198 | 158 | 156 | 236,7 | 379,7 | 9.2303 |
|
NNQUP4293-2Z |
NNQUP4293-2RS |
42 | 93 | 189 | 111 | 109 | 164,5 | 190,5 | 2.1219 |
|
NNQUP4293A-2Z |
NNQUP4293A-2RS |
42 | 93 | 183 | 111 | 109 | 164,5 | 190,5 | 9.1972 |
|
NNQUP4095-2Z |
NNQUP4095-2RS |
40 | 95 | 288 | 200 | 177 | 295 | 359 | 9.187 |
|
NNQUP40100-2Z |
NQUP40100-2RS |
40 | 100 | 278 | 200 | 196 | 35,5 | 62 | 2.1879 |
|
NNQUP45100-2Z |
NNQUP45100-2RS |
45 | 100 | 246 |
|
200 | 196 | 282 | 9.2159 |
|
NNQUP35110-2Z |
NNQUP35110-2RS |
35 | 110 | 129 | 66 | 63 | 177 | 286 | 9.2103 |
|
NNQUP70120-2Z |
NNQUP70120-2RS |
70 | 120 | 377 | 317 | 315 | 282 | 310 | 9.2299 |
|
NNQUP60124-2Z |
NNQUP60124-2RS |
60 | 124 | 196 | 156 | 146 | 520 | 1067 | 9.2134 |
|
NNQUP60127-2Z |
NNQUP60127-2RS |
60 | 127 | 440 |
|
190 | 469 | 1195 | 9.2207 |
