กกBearings For Logistic Industry
Double Row Angular Contact Ball Bearings
กก

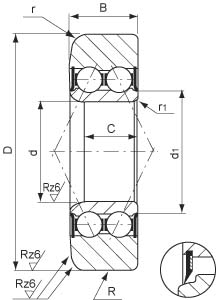

| GLD Type | d | D | B | C | d1 | r | r1 | R | C | Co | Cw | Cow |
Speed/grease |
Reference index |
|
|
mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | KN | KN | rpm | Italy |
| 3306K-2RS | 30 | 70,2 | 23 | 19,2 | 38 | 5 | 1 | 500 | 30 | 21 | 25 | 18 | 7000 | MR.1202 |
| 3306K1-2RS | 30 | 77,7 | 23 | 19,2 | 38 | 5 | 1 | 500 | 30 | 21 | 25 | 18 | 7000 | MR.1204 |
| 3308K-2RS | 40 | 88,8 | 29 | 23,2 | 50 | 6 | 1 | 500 | 48 | 36 | 35 | 25 | 5000 | MR.1219 |
